API 6A PFF/PFFA/PFFY/PFFW Slab Gate Valve

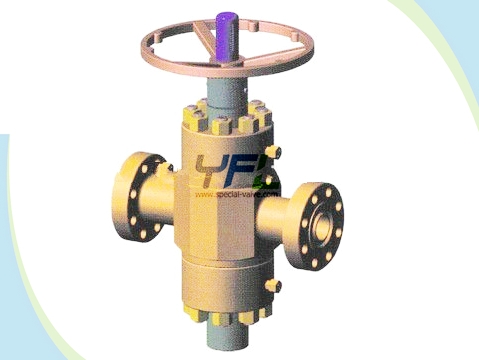

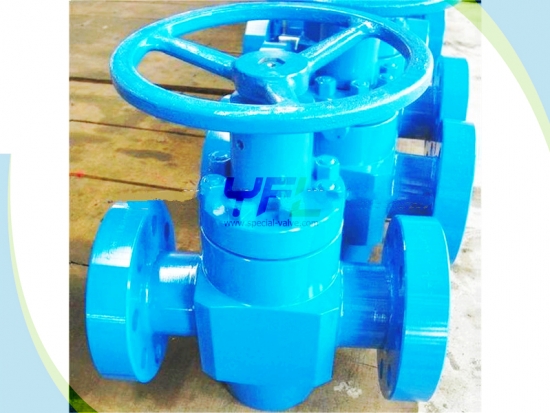

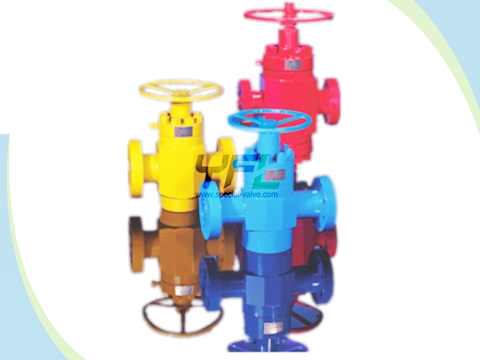

    The YFL API 6A PFF/PFFA/PFFY/PFFW slab gate valve is widely used in well head equipments, well control device, wellhead manifold and oil & gas pipeline in petroleum industry. The YFL PFF slab gate valve is with rising stem and the SV PFFA slab gate valve is with non-rising stem.

Inquiry Now
  • Features
  • Specification

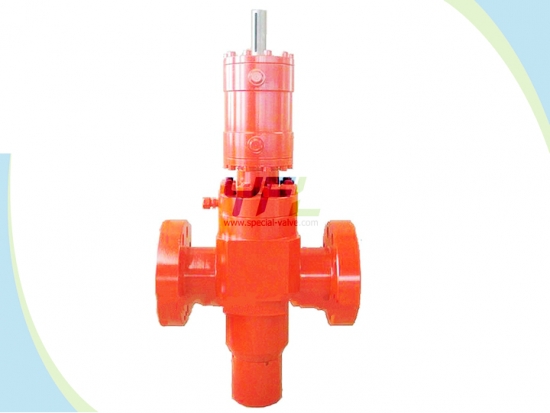

  • The YFL PFFY and PPFW slab gate valve are designed on basis of PFF slab gate valve. PFFY is hydraulic operated and PFFW is with a lower indicator;
  • No rubber seat, seal between bonnet & body and disc & body are all metal seal to meet wellhead working conditions of high pressure, high H2S and high risk;
  • Front seal for PFF slab gate valve and Back seal for PFFA slab gate valve;
  • Both sides of disc are overlaid with Ni60 or tungsten carbide to be wear resistant and anti-corrosive;
  • Seat seal face is overlaid with stellite to be abrasion resistant;
  • Stem back seal structure makes the stem seal ring can be changed under pressure;
  • Sealant injection valve on one side of bonnet increases the sealing and lubrication performance of disc and seat;
  • Lower indicator makes the disc vertical and reduces the operate torque.

PFF/PFFA Slab Gate Valve

  • Pressure ratings: 2000psi 3000psi 5000psi 10000psi 15000psi 20000psi
  • Sizes1-13/16" 2-1/16" 3-1/16" 3-1/8" 4-1/16"
  • Material classes: AA to HH
  • Production Specification Level: PSL 1 to 4
  • Performance Requirement (PR): PR 1-2

PFFY/PFFW Slab Gate Valve

  • Pressure ratings: 2000psi 3000psi 5000psi 10000psi 15000psi
  • Sizes: 2-1/16" 3-1/8" 3-1/16" 4-1/16" 5-1/8" 7-1/16"
  • Working temperature: LU PU
  • Material classes: AA to FF
  • Production Specification Level: PSL 1 to 4
  • Performance Requirement (PR): PR 1-2
