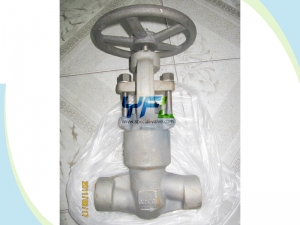

BS 5352 Butt-Welded Forged Steel F91 Y Type Globe Valve

BS 5352 Butt-Welded Forged Steel F91 Y Type Globe Valve

The YFL BS 5352 forging steel globe valve has body in forging materials to be suitable for high pressure working condition such as power station. The YFL forged globe valve has bolted bonnet, welded bonnet, pressure seal bonnet for high pressure.

Inquiry Now

Features
Specification

The YFL forged steel globe valve has full bore and reduced bore design;
The YFL high pressure forged globe valve has straight pattern body and Y type body design;
Bolted bonnet, welded bonnet, pressure seal bonnet;
Outside screw and yoke or inside screw stem;
Solid wedge;
Renewable seat ring;
Forged T-head stem;
Live load packing.

API 602 800LBS 2'' Welded Bonnet F91 Forged Globe Valves DIN Welded Flanged F316Ti Globe valve Forged steel Y type globe valve

Product range:

Size: DN 8～DN50 1/4’’ ～2’’
Pressure rating: PN16～PN420 150lbs～2500lbs
End connection: Flanged RF BW SW Threaded
Body materials: A105 LF2 LF3 F11 F22 F91 F304 F304L F316 F316L F51 F53 F55 F904L etc.
Operation: handwheel electric pneumatic

Technical standards:

Design: API 602 BS5352
Face to Face: ASME B16.10
Flanged ends: ASME B16.5 ASME B16.47 EN 1092
BW ends: ASME B16.25 ASME B31.8 EN12627
SW ends: ASME B16.11
Threaded ends: ASME B1.20.1
Test and inspection: API 598 DIN3230 EN12266
