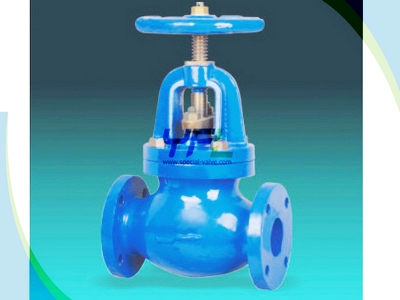

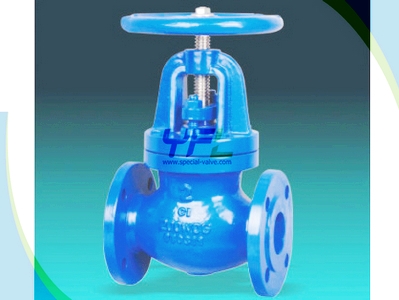

DIN 3356 Straight Type Ductile Cast Iron Globe Valve

DIN 3356 Straight Type Ductile Cast Iron Globe Valve

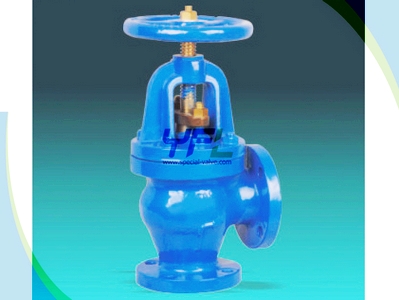

The YFL DIN3356 straight flow type globe valve is widely use to serve the medium of water and steam in the low pressure pipelines of municipal engineering. The YFL ductile cast iron angle globe valve can be also produced according to standards of MSS-SP-85, BS5152, JIS F7306, JIS B2002.

Inquiry Now

Features
Specification

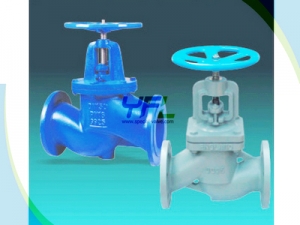

The YFL ductile cast iron globe valve has straight flow type and angle type;
Bolted bonnet, outside screw and yoke;
With pad for actuator available;
The YFL cast iron globe valve is metal seated with brass or stainless steel.

Product range:

Size: DN40-DN300 1 1/2’’ ～12’’
Pressure rating: PN6 PN10 PN16 125PSI 150PSI 10K
End connection: Flanged end
Body materials: Grey cast iron Ductile cast iron GG25 GGG40 GGG50 FC200 FCD40
Disc materials: Grey cast iron/ Ductile cast iron with brass
Operation: handwheel gear electric pneumatic

Technical standards:

Design: MSS SP-85 DIN 3356 BS 5152
Face to Face: BS5152 JIS F7306 EN 558-1 JIS B2002
Flanged ends: BS4504 JIS B2211 JIS B2012 ASME B16.5
Test and inspection: API 598
