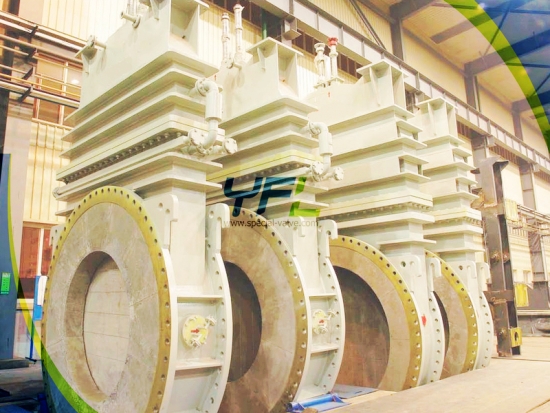

DN1900 Hot blast valve for metallurgy industry

DN1900 Hot blast valve for metallurgy industry
Hot blast valve for hot blast stove system
DN1900 Hot blast valve for metallurgy industry DN1900 Hot blast valve for metallurgy industry

    The YFL hot blast valve is installed in the hot-blast air pipeline of blast furnace system or industrial oven and heating furnace to cut off the high temperature air, coal gas and smoke.

Inquiry Now
  • Features
  • Specification

  • Complete types and specifications with high cost performance and applied system including hot blast stove, furnace top, waste heat recovery, gas de-dusting;
  • Meet the process requirements of the BF with high blast temperature of 1450℃， blast pressure of 0.6Mpa and productivity of 3-4ton/day/m³；
  • The metallurgy valves with 26 independent intellectual property rights have accurate on/off control, good airtight and longer service life;
  • Adopting more than 15 new technology of design, the hot blast valve can resist high temperature and has a good airtight, smooth operation, long service life, energy and water saving;
  • Utilization of complete set can guarantee the reliability and low downtime rate of the system, which has greatly reduced the cost of equipment maintenance.

  • Size: DN1900
  • Pressure: PN16
  • Temperature: 1450℃
  • Valve Body: 20g（along water chamber part）+Q235B（the rest part）+ refractory material
  • Valve Bonnet: Q235B + refractory material
  • Valve Stem: stainless steel 0Cr18Ni9，
  • Valve Plate: 20 forged（for sealing part）+20g（water chamber side plate+235B（for the rest）
