Pneumatic Eccentric V-Port Cut Off Ball Valve

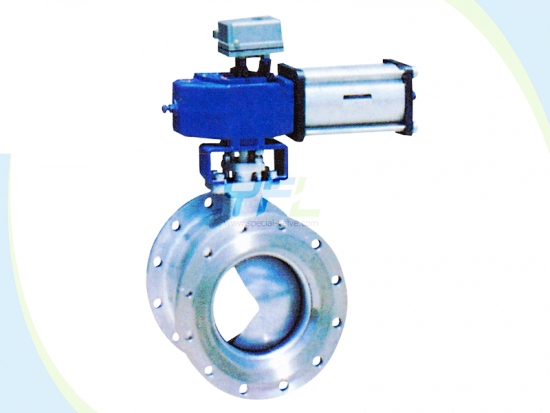

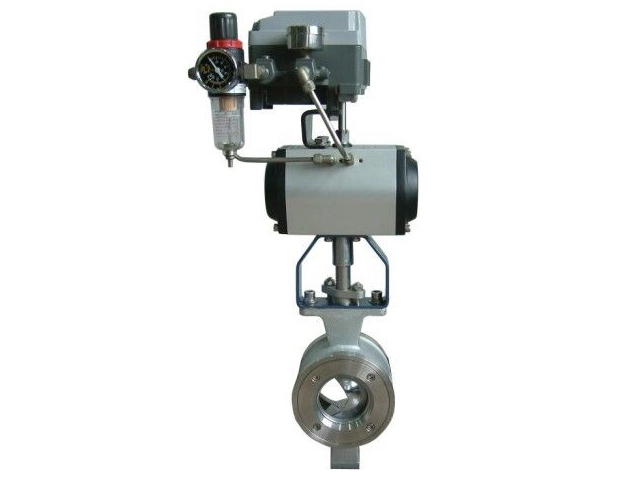

pneumatic V-Port Cut-off ball valves
Pneumatic Eccentric V-Port Cut Off Ball Valve Pneumatic Eccentric V-Port Cut Off Ball Valve Pneumatic Eccentric V-Port Cut Off Ball Valve Pneumatic Eccentric V-Port Cut Off Ball Valve

    The YFL eccentric V-port cut-off ball valve with eccentric structure and V-Port Ball has regulating and cut-off functions.

    When the V-shaped ball is closing to the sealing ring, it can cut off the fiber in the fluid and extrude out the grains.

    The YFL eccentric V-Port Cut-Off Ball Valve is very suitable for the fluid containing fibers and grains such as paper pulp, sewage, slurry etc. in industries of chemical, electric power, metallurgy, paper making etc..

Inquiry Now
  • Features
  • Specification

  • The YFL eccentric V-port cut-off ball valve has integral body without leakage point;
  • Trunnion mounted ball structure;
  • Spring loaded single seat structure;
  • Flow characteristic is equal percent;
  • Best regulating flow function in ball valves;
  • The YFL eccentric V-port cut-off ball valve is suitable for fluid containing fibers, small particles, slurry etc.;
  • Small fluid resistance, simple structure, small volume, light in weight;
  • Reliable soft seal or metal to metal sealing performance;
  • Easy operations, open and close quickly, only rotate the ball by 90°, convenient for remote control;
  • Optional bare stem with ISO 5211 top flange;
  • Fire safe, anti-static and anti-blowout stem design.

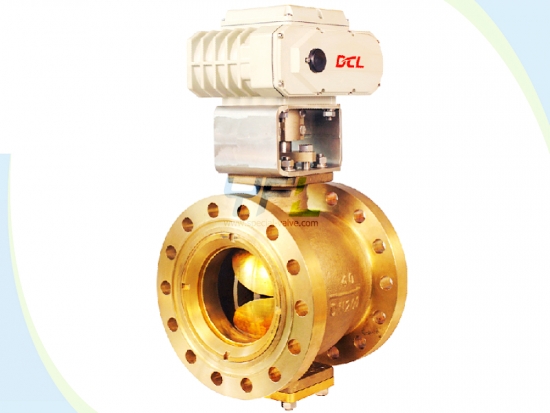

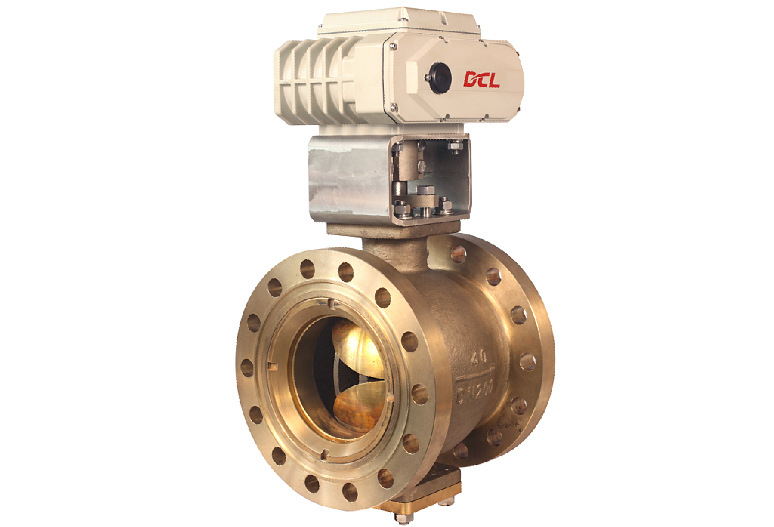

Pneumatic V-port cut-off ball valvemotorized eccentric V-port ball valvesMotorized V-Port Cut-off Ball Valves

Product range:

  • Size: 1"～20" (DN25～500)
  • Pressure rating: Class 150～600 (PN16～PN100)
  • End connection: flanged wafer
  • Body materials: Carbon steel WCB Stainless steel CF8 CF8M CF3M etc.
  • Ball materials: F304L F316L F304+stellite F316+stellite etc.;
  • Seat materials: 304+PTFE 304+stellite 316L+stellite etc.;
  • Flow characteristic: approximate equal percentage;
  • Operation: Bare stem wrench gear electric pneumatic electro-hydraulic gas over oil actuator

Technical standards:

  • Design: ASME B16.34
  • Face to Face: ASME B16.10
  • BW ends: ASME B16.25 ASME B31.8
  • Flanged ends: ASME B16.5 ASME B16.47
  • Wall thickness: ASME B16.34
  • Fireproof test: API 607 API 6FA
  • Test and inspection: API 598 API 6D
  • Pressure and temperature rating: ASME B16.34
  • Leakage class: ANSI class V VI for soft seal ANSI class VI for metal seal
