Short Flanged FEP Lined Butterfly valve

Short Flanged FEP Lined Butterfly valve

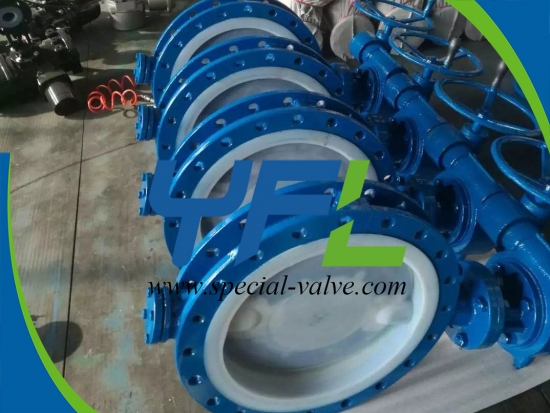

    The YFL Short Flanged FEP Lind Butterfly Valves with FEP lined disc and FEP seat are designed to be suitable for  strong corrosive medium like hydrochloric acid, Nitric acid, Hydrofluoric acid, liquid chlorine, sulfuric acod and aqua regia  in industries of Oil & Gas, Petrochemical, Mining, Metallurgy, Hydropower station, Pharmaceutical, Paper, Environment protection etc.
Inquiry Now
  • Features
  • Specification

Materials specifications:

Body: GG25, GGG40, WCB, LCB, CF8, CF8M, CF3, CF3M

Lining material: PTFE, FEP, PFA, GXPO

Shaft: 2Cr13(SS420), SS410, 17-4PH

Shaft sleeve: Silicone rubber

O-ring: Viton, Viton+FEP, Viton+PFA

Disc: WCB, CF8/CF8M, CF3/CF3M

Seat: PTFE, RPTFE, FEP, PFA

Elastic backing: Silicone rubber, Viton



Standards and Range:

Design & Manufacture Standard: API 609

Flange Standard: ASME B16.5, JIS B2220, EN 1092-1

Face to Face: ASME B16.10

Inspection & Test Standard: API 598

Nominal diameter: 2''-64''

Nominal pressure: 1.0 MPA, 1.6 MPA, 150LB
