Three Way Slurry Valve

Three Way Slurry Valve

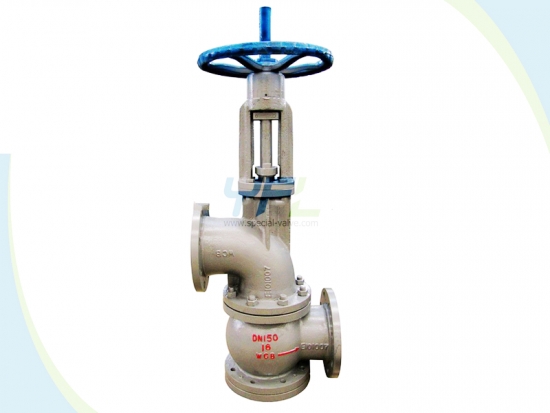

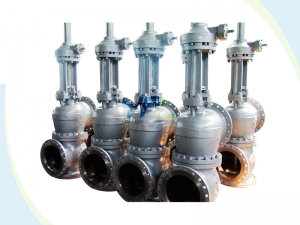

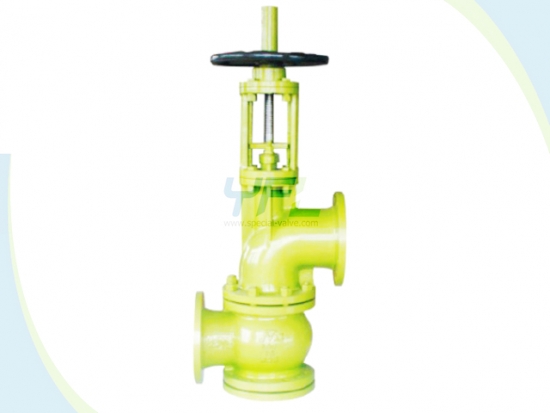

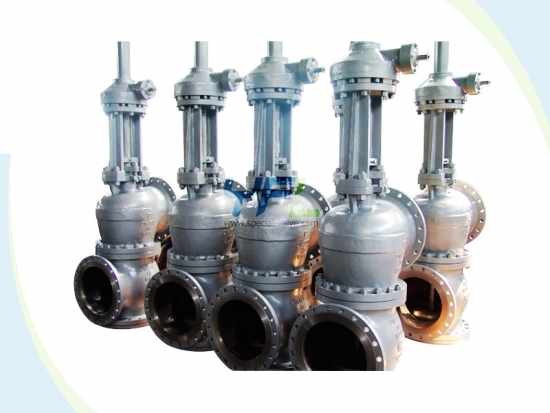

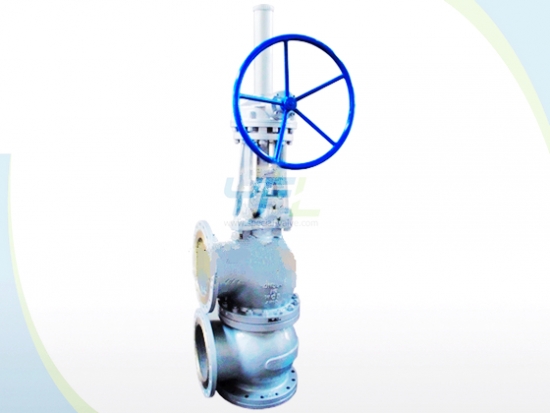

The YFLthree way slurry valve equipped with three opening ways and two seats is mainly used to change the medium flow direction and distribute the medium.

The YFL three way slurry valve is widely used in industries of chemical fertilizer, mining, metallurgy, aluminum oxide and other industries which has slurry contained solid particles.

Inquiry Now

Features
Specification

The sealing adopts spherical seal with line connecting surface;
Three opening ways and two seats;
Sealing surface overlaid with full Stellite or Tungsten carbide;
High abrasion-resistance and erosion-proof.

Product range:

Body material: carbon steel stainless steel alloy steel
Nominal diameter: 1/2"～24"（DN15~DN600）
Pressure range: Class150～2500（PN10~PN420）
End connection: RF RTJ BW
Working temperature:-29℃～560℃
Operation: handwheel gear box electric etc.

Technical standards:

Design standard：GB/T 12235 BS1873
Face to Face：GB/T 12221
Flange dimensions：GB/T 9113 HG/T 20592 HG/T 20615 ASME B16.5
Pressure test：JB/T 9092 API 598
Product Mark：GB/T 12220 MSS SP-25
