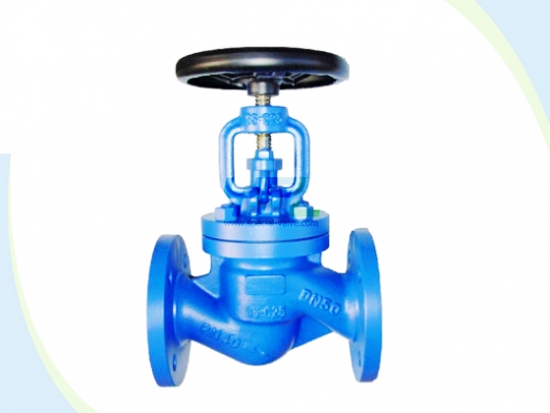

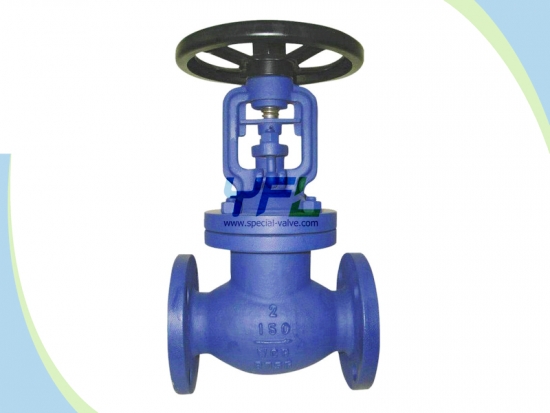

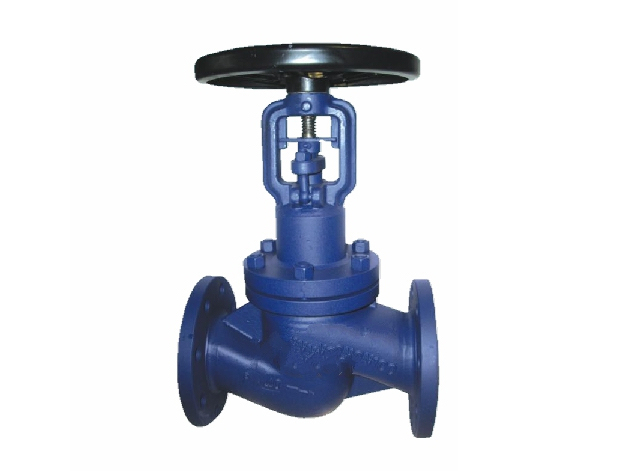

ANSI/DIN Bellows Seal Globe Valve

ANSI/DIN Bellows Seal Globe Valve

The YFL bellows seal globe valve includes ANSI and DIN standards, non-rising stem and extended stem, bolted bonnet and high pressure self-sealing bonnet bellows seal globe valve. The YFL bellows seal globe valves are applicable to flammable, explosive, poison, strong penetrability, radioactive, valuable, high-purity medium etc.

Inquiry Now

Features
Specification

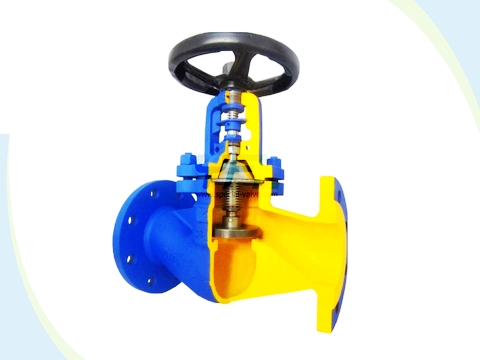

The metal bellows of the YFL bellows seal globe valve connect the cover and stem to keep the stem without leakage;
Benefit from the con and streamline shape design, the disc has a excellent seal and longer service life;
The YFL bellows seal globe valve has double seal design with bellows seal and packing seal protects against leakage and provides excellent seal;
Grease nipple can lubricate the stem, nut and sleeve.

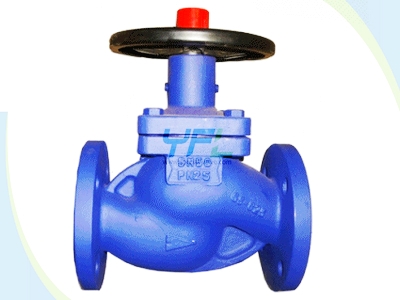

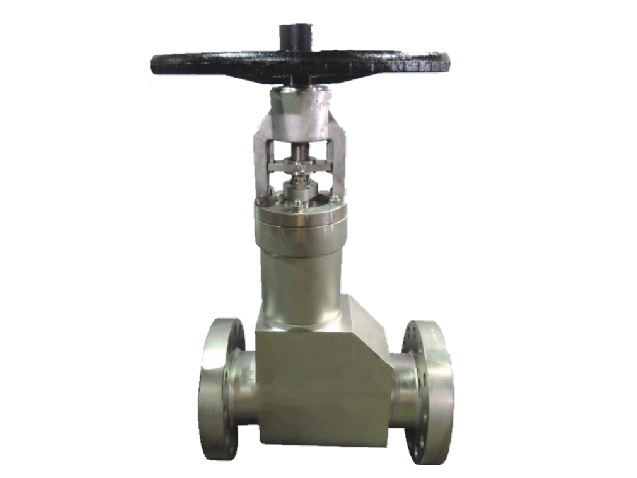

Non rising stem bellows seal globe valves Extended bellows seal globe valves Pressure seal bellows seal globe valves for high pressure

Product range:

Size: 1/2"～20" DN15～DN400
Pressure rating: Class 150 Class 300 Class 400 Class 600 PN16 PN25 PN40
End connection: Flanged RF
Body materials: A105 WCB CF8 CF8M GS-C25 1.4301 1.4401 etc.
Operation: handwheel gear electric pneumatic

Technical standards:

Design: ASME B16.34 DIN3352
Face to Face: ASME B16.10 DIN3202
Flanged ends: ASME B16.5 DIN2543 DIN2545
Test and inspection: API 598 DIN3230
