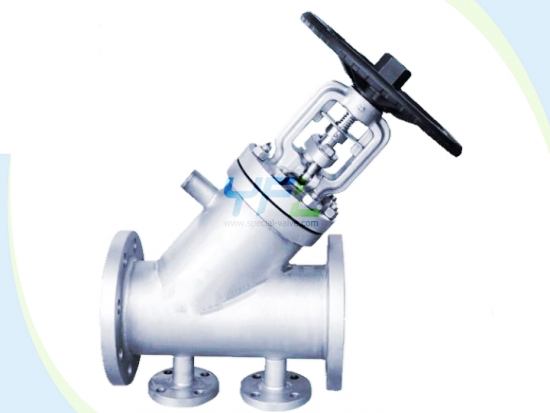

Jacketed Bellows Seal Y Type Globe Valve

Jacketed Bellows Seal Y Type Globe Valve

The YFL jacketed bellows seal Y type globe valve is widely used in petroleum, chemical industry, pharmacy, fertilizer, power industry, hot oil system, steam system, hot and cold water system etc.

Inquiry Now

Features
Specification

The metal bellows of the YFL jacketed bellows seal Y type globe valve connect the cover and stem to keep the stem without leakage;
The YFL jacketed bellows seal Y type globe valve has double seal design with bellows seal and packing seal protects against leakage and provides excellent seal. Jacketed valves are used where temperature control of the media is critical;
Grease nipple can lubricate the stem, nut and sleeve.

Product range:

Size: DN15～DN400
Pressure rating: PN16 PN25 PN40
End connection: Flanged RF
Body materials: GS-C25 GGG-40 1.4401 etc.
Operation: handwheel gear electric pneumatic

Technical standards:

Design: DIN3356
Face to Face: DIN3202
Flanged ends: DIN2543 DIN2545
Test and inspection: DIN3230
