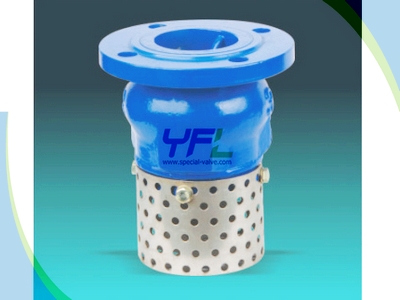

EN 1074-5 GGG50 Non Return Foot Valve

EN 1074-5 GGG50 Non Return Foot Valve

The YFL ductile cast iron foot valve is widely used to serve the medium of water and steam in the low pressure pipelines of municipal engineering.

Inquiry Now

Features
Specification

The YFL ductile cast iron foot valve is installed at the bottom of pump inlet water pipe to avoid backflow and act as a non return valve;
Screen on the bonnet to reduce impurities into the pump;
Flanged end or threaded end available;
The YFL cast iron foot valve has single disc, double disc or multi discs.

P roduct range:

Size: DN50-DN300 2’’ ～12’’
Pressure rating: PN6 PN10 PN16 125PSI 150PSI
End connection: Flanged end
Body materials: Grey cast iron Ductile cast iron GG25 GGG40 GGG50

Technical standards:

Design: EN 1074-4
Face to Face: EN558-1
Flanged ends: EN 1092-1
Test and inspection: DIN3230
