Single Shaft Secondary Shredder

Single Shaft Secondary Shredder
Inquiry Now
  • Features
  • Specification

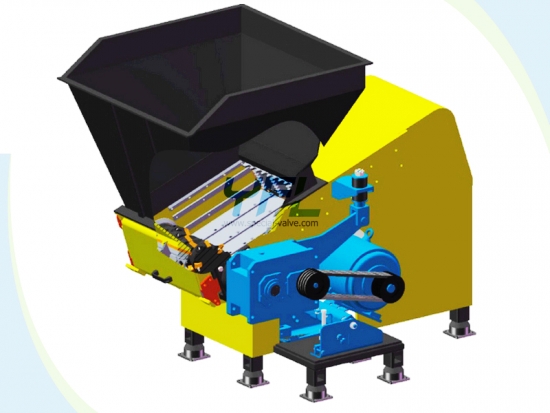

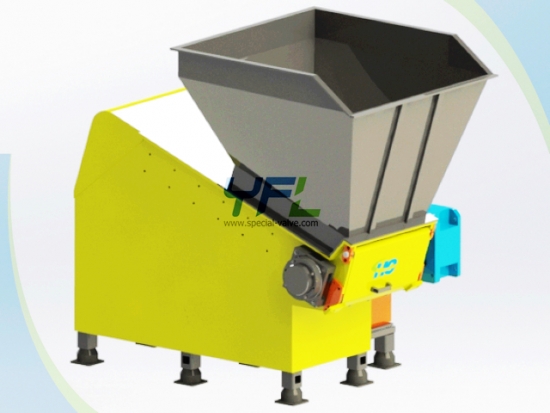

The HC single shaft secondary shredder is specially design for fine shredding the solid waste into size of 15 mm to 100 mm with design output of 300 Kgs/h to 5000 Kgs/H (depends on materials’ density).

Applications:

Suitable for but not limited to

plastic pulverizer  Tire granulator

Woven bag, PET bottle, Plastic barrel, ABS, Fiber  Tire, Rubber products, Leather products

wood secondary pulverizer  secondary pulverizer for wire, cable

Wood, Timber, Tree root, Wood pallets, Plywood             Power cable, copper wire, tube

Paper pulverizer  light metal pulverizer

           Commercial and industrial paper                light metal, aluminum can, Aluminum scrap

E waste pulverizer  solid waste pulverizer

 E-waste, TV shell, Washing machine shell, PCB        MSW, RDF, SRF, MRF, Industrail waste


Main components:

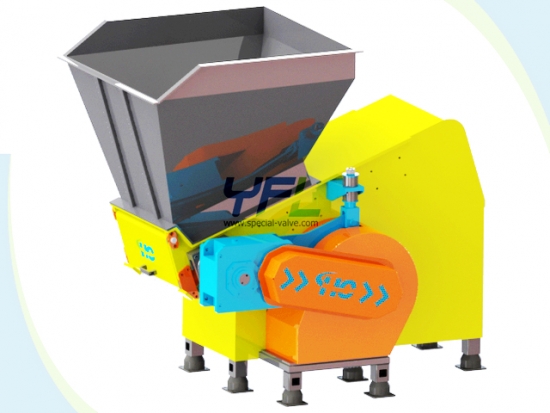

Pusher for single shaft secondary shredder




Pusher:

The hydraulic ram pushes materials to the rotor for shredding repeatedly.

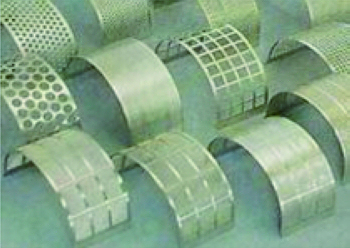

Screen for single shaft secondary shredderScreen:

Various size and shape of screens make the oversize particles shredded again.

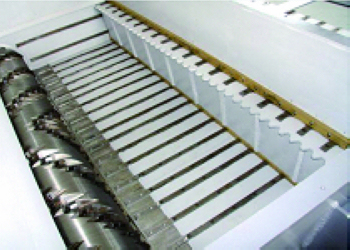

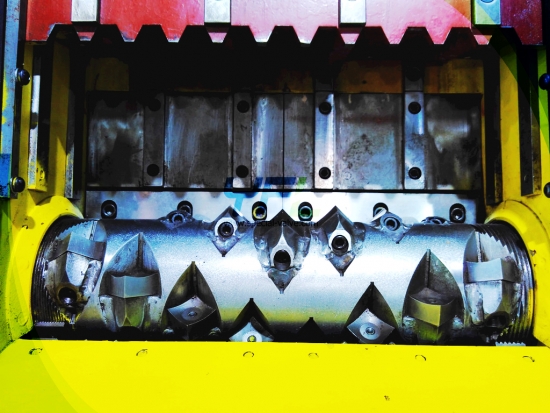

Rotor:Rotor for single shaft secondary shredder

Various rotor configurations are available for shredding wide range of materials.

The four edges of rotor can be used in turn to extend the service life by three times.

Model Parameters:

Customized single shaft secondary shredders are supplied to our customers according to specific feeding materials, capacity and output size.

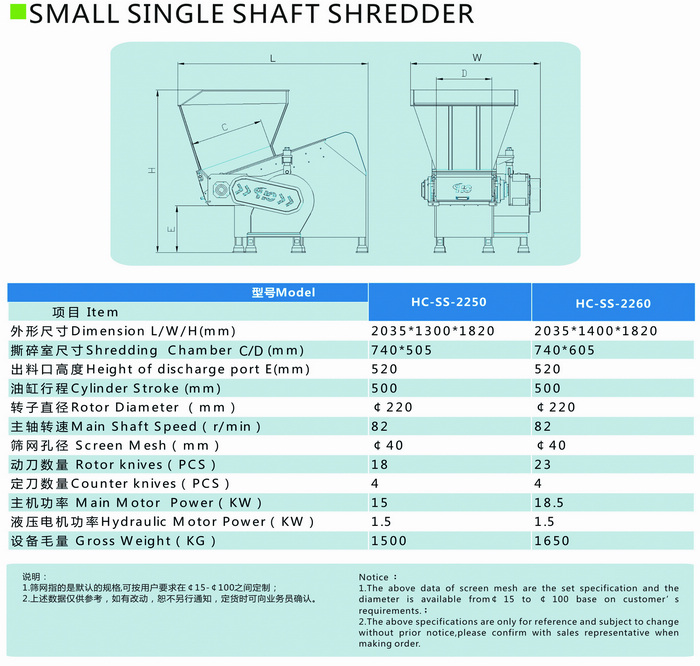

Single shaft secondary shredder parameters
