Side Entry Forged Steel Trunnion Mounted Ball Valve
The

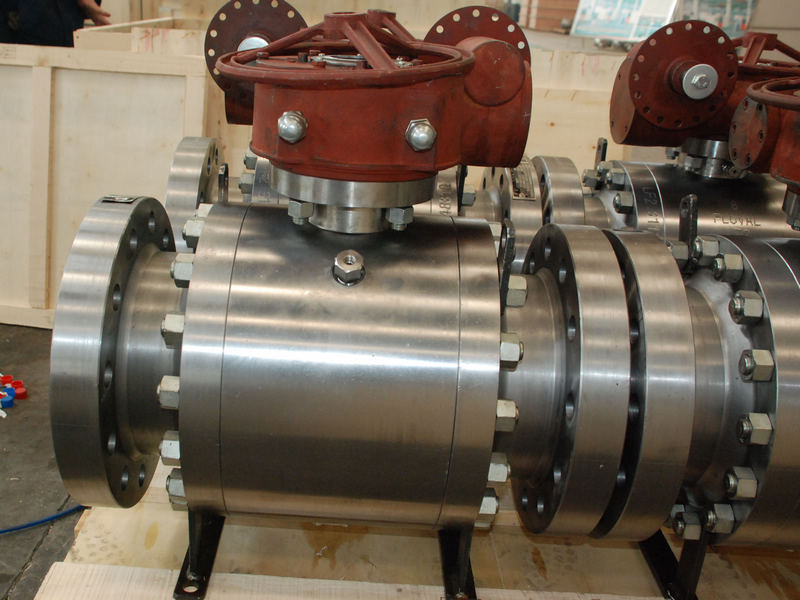

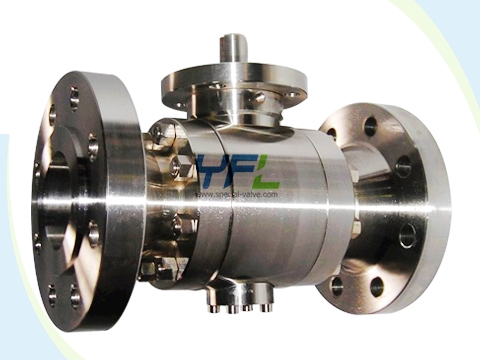

SV side entry forged steel trunnion mounted ball valve has a
trunnion mounted ball supported by two floating seats.
The pressure of media will push the two floating
seats seal ring at both ends to attach the ball’s surface tightly to ensure
bidirectional reliable sealing.
The
SV high pressure forged trunnion mounted ball valve has forged steel body
which is suitable for higher pressure than casting body and can avoid
shrinkage cavities, pin holes, cracks, sand holes and other defects may occurring
in casting body.
Inquiry Now

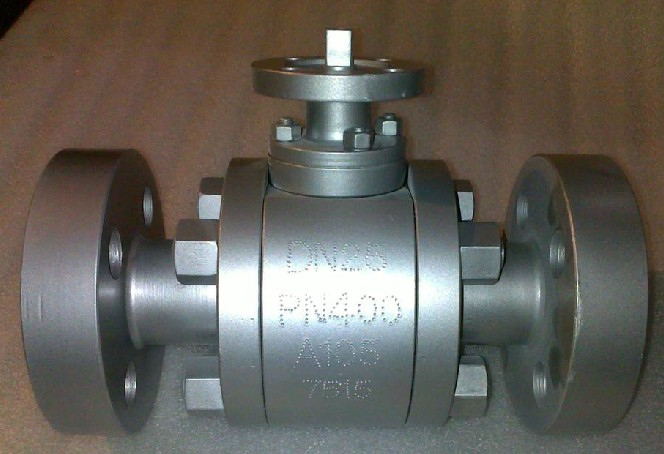

- The SV split body forged steel trunnion
mounted ball valve can be divided into two pieces split body and three pieces
split body;
- The
two pieces split body and three pieces split body is connected by bolts and
nuts;
- The SV full bore forged steel trunnion
mounted ball valve can be soft seal structure and metal to metal seal structure;
- Designed
according to API or DIN standards;
- The
trunnion ball is supported by upper and lower bearing to reduce the friction
between ball and seat so that the operate torque is small for easy operation;
- Spring
loaded seat is self-tightening to ensure reliable tight seal;
- Cavity
pressure self relief when spring loaded single piston effect seat structure;
- Double
block and bleed for residue discharge and pressure relief;
- Full
bore and reduced bore structure;
- Optional
extended stem or extended bonnet;
- Optional
bare stem with ISO 5211 top flange;
- Fire
safe, anti-static and anti-blowout stem design.
Product range:
- Size: 2"～56" (DN50～1400)
- Pressure rating:
Class 150～2500 (PN16～PN420)
- End connection:
RF, RTJ, BW
- Body materials: Carbon
steel A105, Low temperature steel LF2, LF3 Stainless steel F304, F304L, F316,
F316L, Duplex stainless steel F51, F53, F55, 904L etc.
- Ball materials:
A105+ENP, F304, F316, F304L, F316L, F51, F53, F55, 904L etc.;
- Seat materials:
PTFE, RPTFE, NYLON, DEVLON, PEEK, PPL, FKM or metal to metal seal etc.

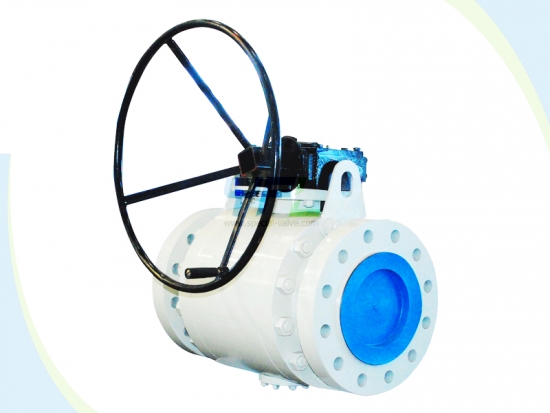

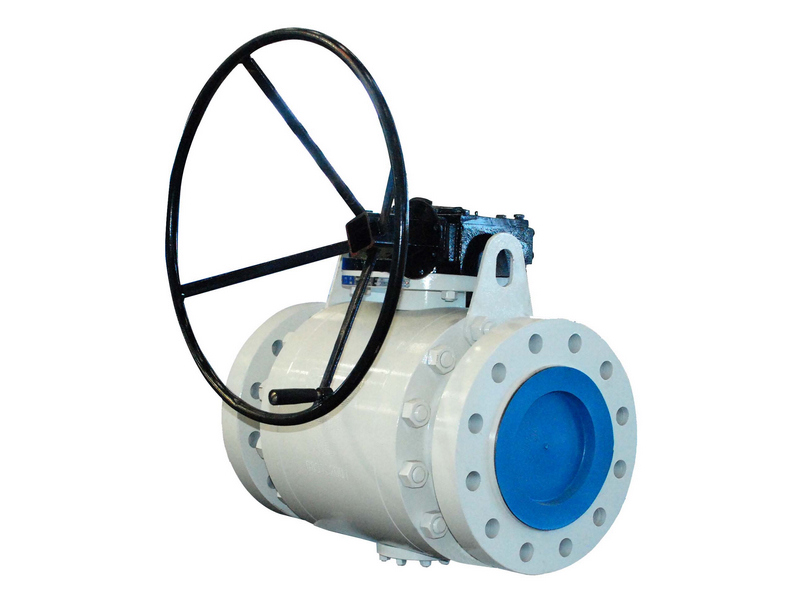

- Operation: Bare
stem, wrench, gear, electric, pneumatic, electro-hydraulic, gas over
oil actuator
Technical
standards:
- Design: API6D, ASME
B16.34, DIN 3357-1，EN12516-1
- Face to Face: ASME
B16.10, DIN 3202F1/F4/F5/F17/F18
- BW ends: ASME
B16.25, ASME B31.8, EN12627
- Flanged ends:
ASME B16.5, ASME B16.47, EN1092
- Wall thickness:
ASME B16.34
- Fireproof test:
API 607, API 6FA
- Test and
inspection: API 598, API 6D, DIN3230/3,EN12266
- Pressure and
temperature rating: ASME B16.34
